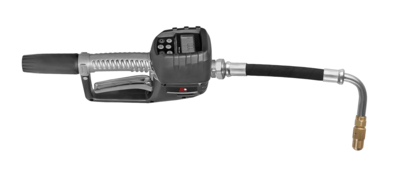

Pre-set digital hand meter 90° outlet hose and manual non-drip

Digital meter with automatic function, the volume to be dispensed can be selected and the meter will shut off automatically. Microprocessor controlled, ergonomically designed with swivel, inlet filter and battery. The trigger can be locked in the open position and then closed with a slight tap on the locking button. Features:• Pre-set • Up to 10 pre-programmed volumes • Transaction memory 5 last tapping • Zero trip meter • Non-resettable total counter • Battery indicator • Measuring units Liter, US Gallons, Quarts and Pints

Technical data

Part No

10472

Media

Oil/Glycol

Capacity

0,8-30 l/min

Maximum working pressure

10,0 (100) MPa (bar)

Pre-set

0,1 - 999,9 l

Connection

1/2" (F) BSP

H.S. Code

90261021

Downloads

• 10400_Manual_EN_SE_1a.pdf
• 10400_Broschyr_EN_SE_1a.pdf
